ROSS - SERPAR® Crossflow Press Control Double Valves

ROSS - SERPAR® Crossflow Press Control Double Valves

STANDARD SPECIFICATIONS
Pilot Solenoid	: Two,rated for continuous duty.
Standard voltages	: 100-110 volts 50 Hz, 100-120 volts, 24, 110, volts DC.Other voltages available.
Power Consumption	: Each solenoid, 87 VA inrush, 30 VA holding on 50 or 60 Hz ; 14 wtts on DC

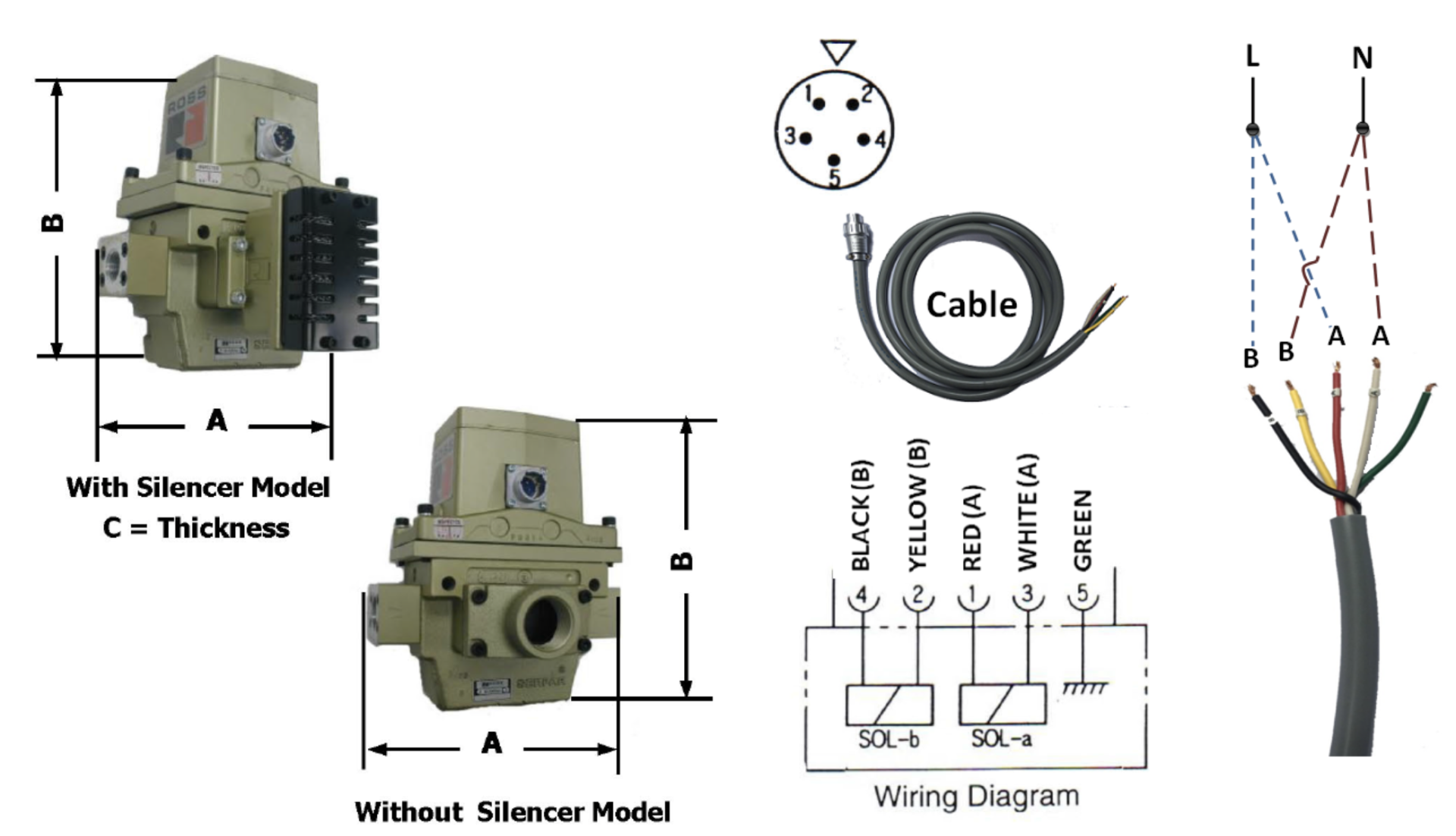

Electrical Connections	: Multipin Connector.
Ambient Temperature	: 4 to 50 C (40 to 120 F)
Media Temperature	: 4 to 80 C (40 to 175 F)
Flow Media	: Filtered air.
Pressure Range	: 2 to 8.5 bar (30 to 125 psi)
Ports	: NPT threads.

VALVE OPERATION

Both solenoids must be energized simultaneously to shift the valve; maintained signal required to keep valve shifted.

Valve Response Time (msec) = M + F * V

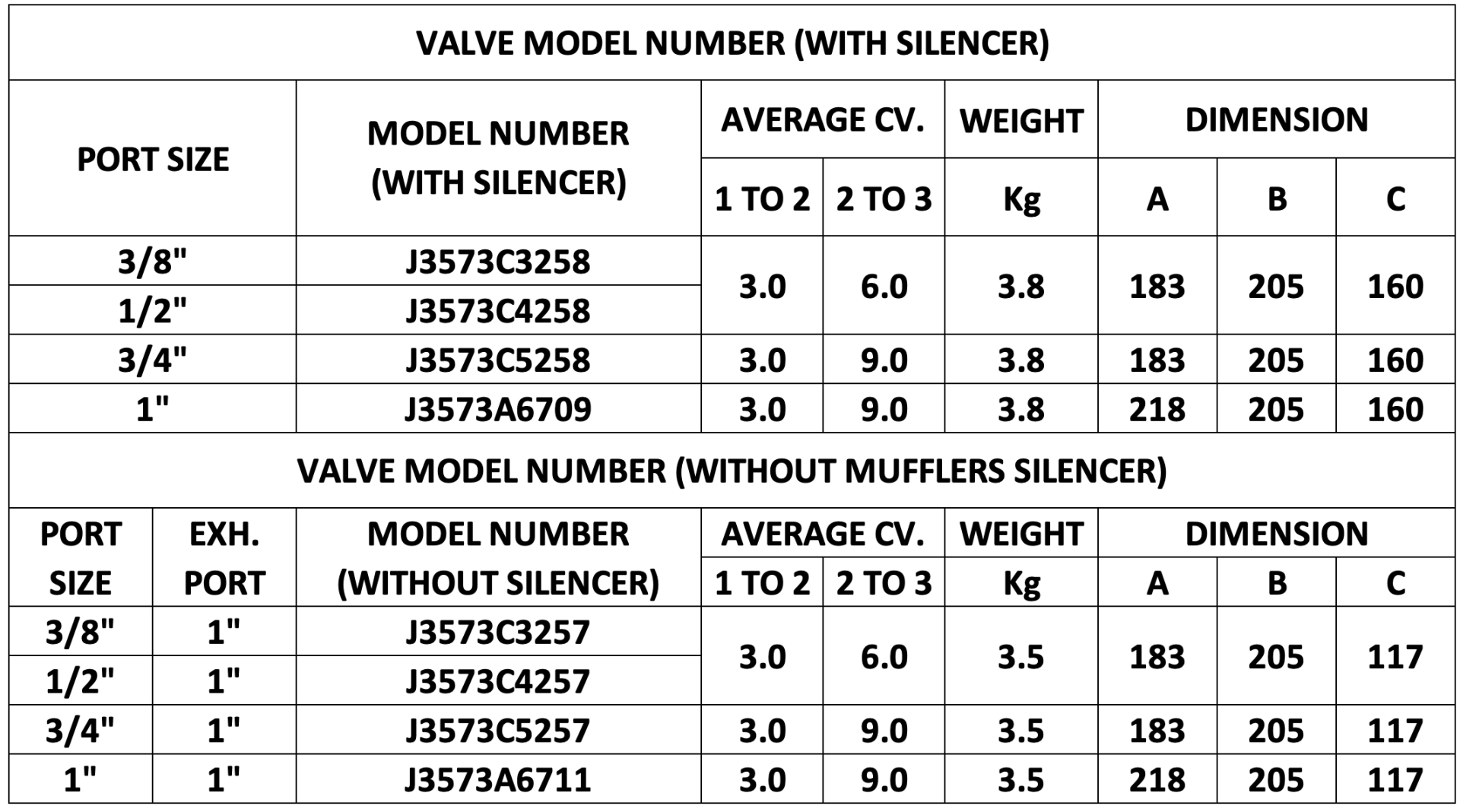

average time required to fill volume V (cubic inches) to 90 percent of supply pressure or to exhaust it to 10 percent of supply pressure.M and F values are shown in chart below. See Valve Response Time on page 18. Rating also on page 18.
