FINE TEK PRODUCTS

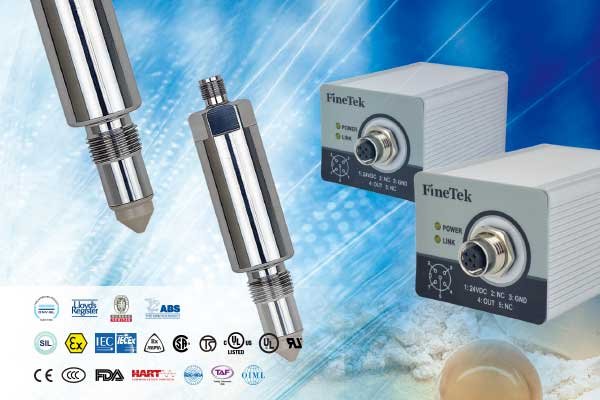

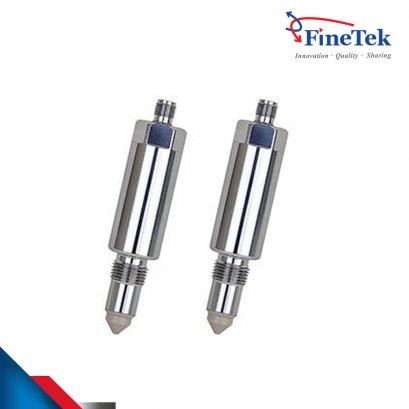

SIS Sanitary

Used for high, low position alarm in production process tank or pipelines.The compact design to facilitate carrying and transporting, and can be quickly installed even in the area of narrow space or difficult operation.

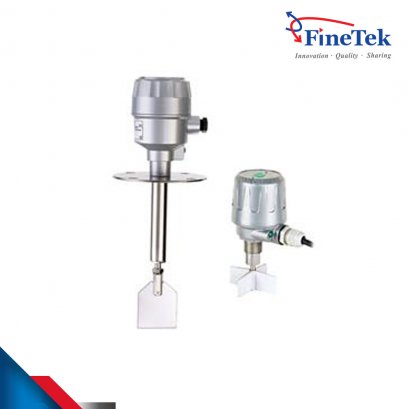

SE Series

The SE series operating principle is simple. A unit is usually located through a bin wall at the top, middle or low level of a bin. During normal operation (no material present) a synchronous motor rotates the paddle at 1 RPM. When this paddle rotation is impeded by material, surroanding the paddle, motor will stall and cause the Micro switch to change state. (indicating an alarm or control) Product Introduction

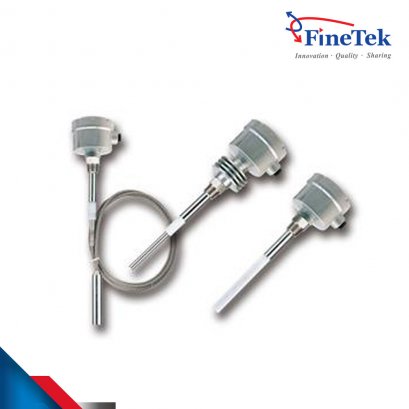

SA Series

The Fine-tek Capacitance Switch for liquids and solids can be used in mediums such as liquids, pastes, syrups, powders, granules, flakes and chips.

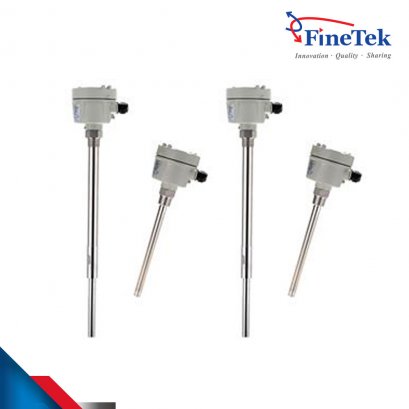

SC Series

The Finetek vibrating probe switch is highly versatile and can be used for most almost any bulk solid application.

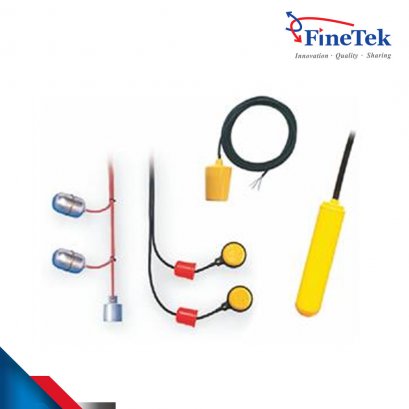

FA/FB Series

The FA/FB Series is a cable float level switch product line constructed from a variety of chemical resistant materials. These are durable, low-cost, simple and easy-to-use float level switches equipped with either a microswitch, reed switch or mercury switch output.

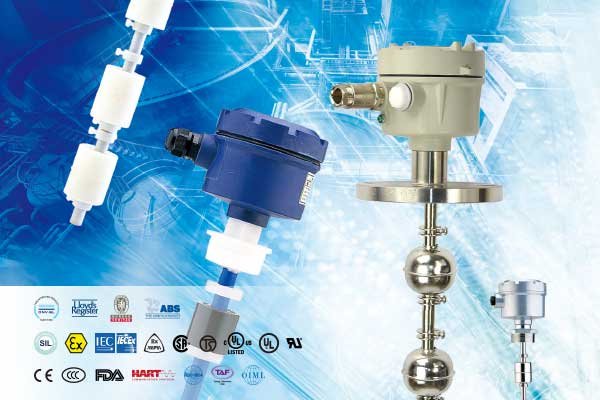

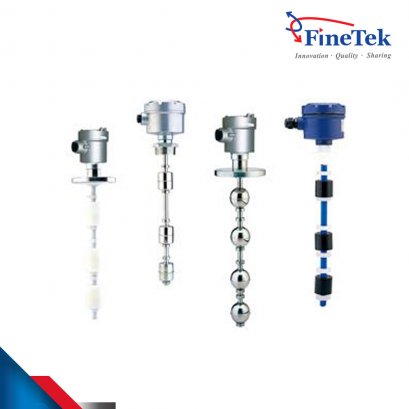

FC/FD Series

The FC/FD Series is a magnetic float level switch product line. They are top mounted units designed to provide cost-effective multiple switch points using a single entry point into the vessel.

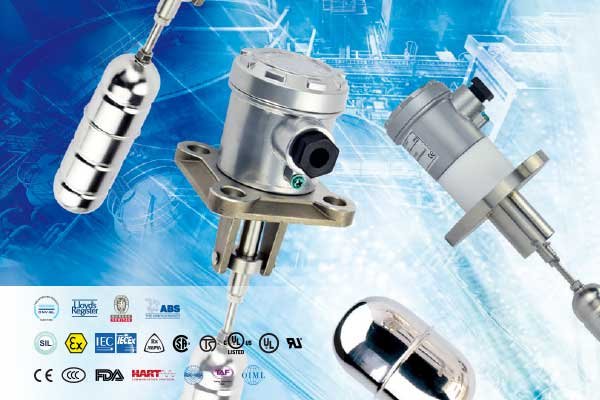

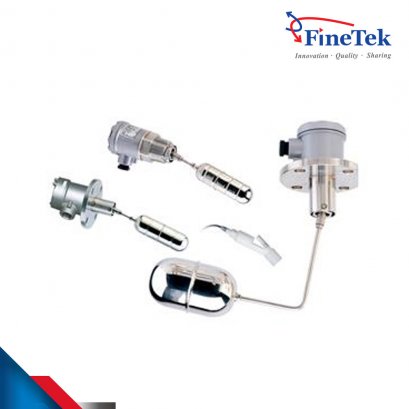

FF Side

The FF Series is a magnetic float level switch specifically designed for mounting on the side of a vessel where float orientation is horizontal. It is suitable for industrial use with a wide range of fluids where the float level switch will operate with fluid density as low as 0.25 S.G..

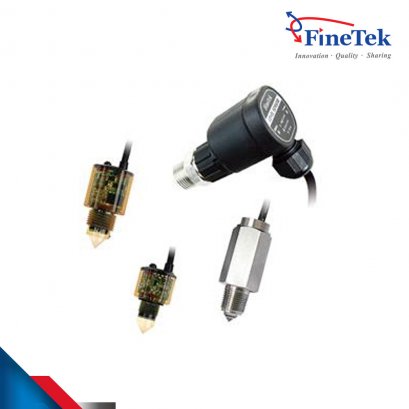

SD Series

The SD Series optical level switch uses the principle of light reflection in a prism to sense the absence or presence of a liquid at the point where the sensor is installed in a tank, pipeline or other type of container.

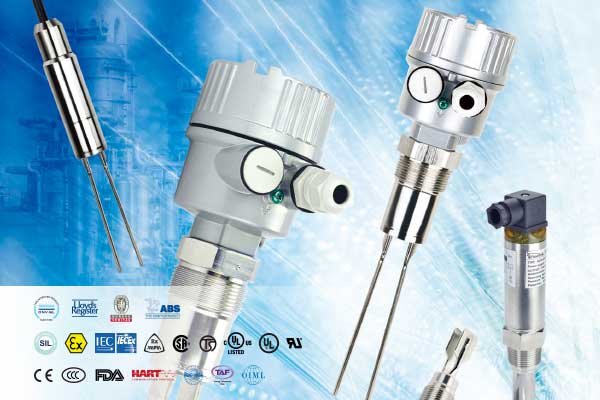

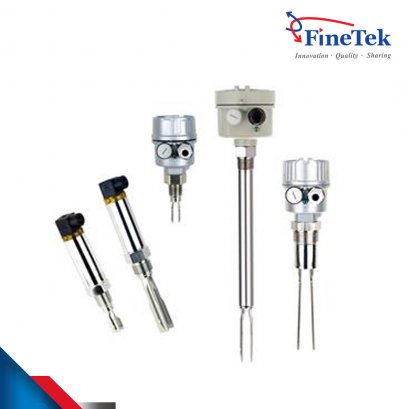

SC Series

The SC Series tuning fork liquid level switch does not require any calibration, is easy to install and will operate properly as a high, low or intermediate level switch with a wider range of fluids. A “sister” product line, the SC35 series vibrating fork level switch for powder and bulk solids, the SC series tuning fork liquid level switch has the same high reliability and performance.

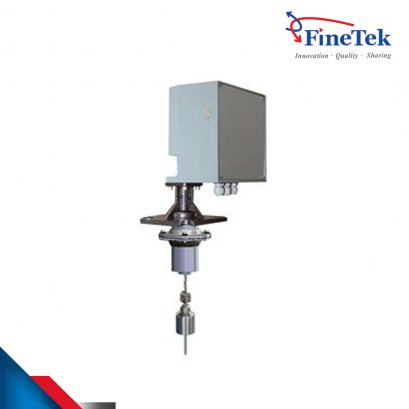

EE Series

The EE300 Series is an electromechanical inventory level measuring system which uses state-of-the-art third generation weight & cable technology to periodically measure the level of liquid and bulk solid materials held in storage. The EE300 series level measuring system includes the EE300 sensor and available RCU remote control unit or MMS-TL PC-software.

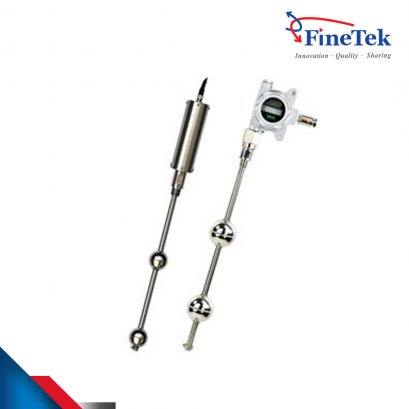

EG Series

The EG Series is a magnetostrictive level transmitter used to accurately measure the changing level of liquids. The EG magnetostrictive level transmitter uses the principles of buoyancy and magnetostriction. Single and two-float designs are available.

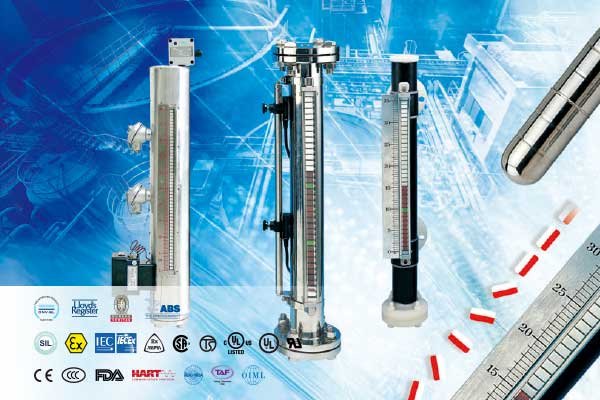

EF Series

EF/MEF Series are by-pass level transmitter product lines, more commonly know as magnetic level gauge devices that can be equipped for local visual indication only or with level switches and an electronic level transmitter output. The magnetic level gauge units include their own self-contained chamber that would be mounted to the vessel, typically via side connections at the top and bottom areas of the EF/MEF by-pass chamber. The EF is standard size and MEF is a smaller “mini” version. These magnetic level gauge units are safer than glass gauges that they typically replace.

JTR Guided

The guided wave radar level transmitter is a solid and liquid level measuring instrument commonly used in the industry.

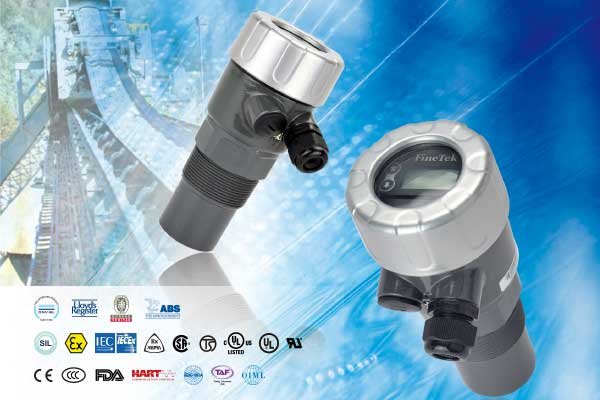

EAX

The ultrasonic level transmitter is a non-contact, low-cost and easy-to-install measuring device. It can be applied to most industrial applications for both solids and liquids. Most important aspect of is that it is easy-to-install and low maintenance due to no moving parts.

JFR Series

The JFR Series is a open-air radar level transmitter designed for measuring the changing level of liquids, slurries and bulk solids in tanks, bins and silos. Operating at either 10GHz or 26GHz the JRF series radar level transmitter products will provide non-contact continuous level measurement with high accuracy and reliability.

DEP30

FINETEX-DEP30-SERIES | EPD Series Electromagnetic Flowmeter

LEVEL SENSOR APPLICATION

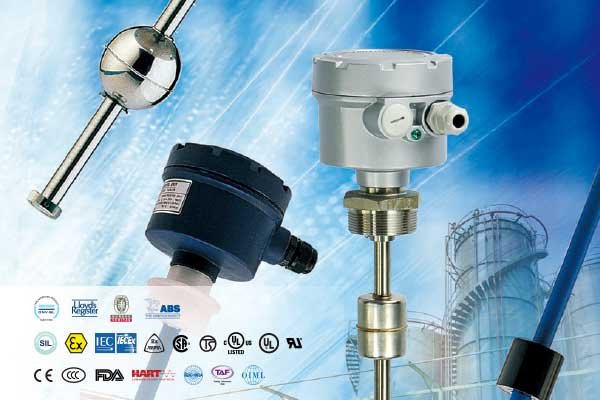

Case Study/Magnetic Float Level Transmitter

1. Application : Textile
2. Product : FG magnet float level transmitter
3. Object : Dye (Open tank)
4. Tank height : 2 mtr
5. Used by-pass from other supplier before, now use FG+PB Panel meter for 4-20 mA output monitoring

Download : Catalog

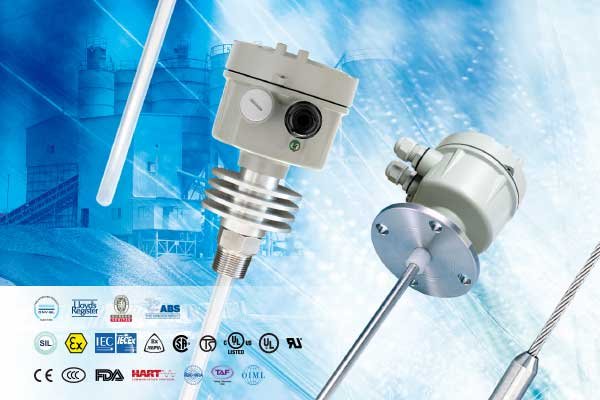

Case Study/RF-Admittance Level Transmitter

1. Application : Pharmaceutical
2. Product : EB5 capacitance level transmitter with PFA coating
3. Object : Deionized water (DI water)
4. Tank height : 1.6/ 1.4 mtr

Download : Catalog


Case Study/By-Pass Level Transmitter

1. Application : Power Plant
2. Product : EF+EG31 By-pass +magnetostrictive
3. Object : Hot water (boiler)
4. Used sight glass level gauge from other supplier before, the customer requested 4-20 mA with high accuracy

Download : Catalog


Case Study/Ultrasonic Level Transmitter

1. Application : Water treatment plant
2. Product : ZMWB1A
3. Object : Waste water (Open tank)

Download : Catalog


Case Study/SIS Sanitary Point Level Switch

1. Application : F&B
2. Product : SIS

3. Object : Soya bean milk
4. The SIS sensor effectively eliminates issues with residue and foam build-up. Detection of proper level is ensured –even with viscous media residue.

Download : Catalog


Case Study/Tuning Fork Level Switch

1. Application : F&B
2. Product : SC28 compact tuning fork level switch
3. Object : Milk process
4. Clean-in-place (CIP) process required, 150 deg. C

Download : Catalog

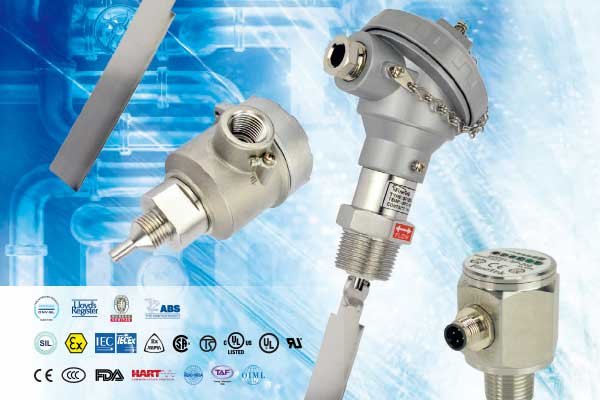

Case Study/Thermal Dispersion Flow Switch 28

1. Application : Semi-conductor
2. Product : SP200
3. Object : Cooling water in pipe
4. Detect cooling water flow in pipes for the system.

Download : Catalog


Case Study/Admittance Level Switch 32

1. Application : F&B
2. Product : SB admittance / capacitance level switch
3. Object : Sauce for hot pot
4. Sticky material

Download : Catalog


Case Study/Magnet Float Level Switch

1. Application : Chemical Plant
2. Product : FC float type magnet level switch
3. Object : NaOH(sodium hydroxide)
4. Produce SiO2 as additives for rubber processing (Car tyres)

Download : Catalog


Case Study/Side-mounting Float Level Switch

1. Application : Food& Beverage
2. Product : FF10CFM
3. Object : Crude rice bran oil
4. High/Low level control

Download : Catalog
