SKU : 6014
BURKERT TYPE 6014 - Plunger valve 3/2 way direct-acting
หมวดหมู่ : Process & Control Valves ,  Valve ater and other neutral media ,  Brand ,  Burkert ,
Share
คำอธิบาย
วาล์ว 6014 เป็นวาล์วดีไซด์แบบไดเรควาล์ว ชนิดของ Stopper และ Plunger Guide Tube จะถูกเชื่อมเข้าด้วยเพื่อทนแรงดันและป้องกันการรั่วได้ มีซีลให้เลือกหลายชนิดตามงาน มีทั้งแบบ Flange เพื่อยึดแบบ Subbase ได้หลายตัว คอยล์มีให้เลือกทั้ง Polyamide และ Epoxy รวมทั้งคอยล์แบบพิเศษ เพื่อประหยัดไฟ (Pulse coils and 'Kick and Drop' electronics) มีแบบมี Manual (เพื่อการทดสอบ) ให้เลือก วาล์วมี Plug ให้พร้อม (DIN EN 1730-803 FORM A) วาล์วดีไซด์ด้วย Protection Class IP65. และสเตนเลสสตีล (NEMA 4X)
ไดเรคแอคติ้งและคอมแพควาล์ว มี ORIFICE โต 2.5 มม.
มีระบบป้องกันคอยล์หลุดเลื่อนจากการสั่นสะเทือน
มีข้อต่อแบบ Banjo เพื่อต่อตรงกับนิวแมติกส์วาล์วได้
มี mannual เพื่อสะดวกในการ Test วาล์ว
มีระบบคอยล์ที่มีประหยัดไฟให้เลือก
* สำหรับการเลือกผลิตภัณฑ์ที่ถูกต้องโปรดดูข้อมูลทางเทคนิคภาพและโน้ตเพื่อการใช้งานที่เหมาะสมตามข้อมูล
Description
Valve 6014 is a direct-acting plunger valve. The stopper and plunger guide tube are welded together to enhance pressure resistance and leak-tightness. Various seal material combinations are available depending on the application. A Bürkert-specific flange design (SFB) enables space-saving arrangement of valves on a manifold. The coils are moulded with polyamide or with chemically resistant epoxy. Pulse coils are available for the reduction of electrical power consumption during operation. Optional manual actuation enables quick commissioning and easy maintenance. In combination with a plug in accordance with DIN EN 175301-803 Form A, the valves satisfy protection class IP65. Stainless steel valves satisfy NEMA 4X.
Direct-acting, compact valve with diameter of up to DN 2.5
Vibration-proof, bolted coil system
Banjo threaded connection for direct mounting on pneumatic valves
Service-friendly manual override
Energy-saving pulse versions
* For selecting the correct product please refer to the technical data, images and notes for proper use according to the data sheet.

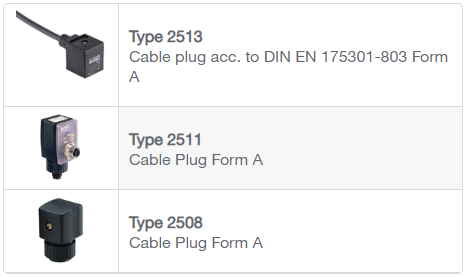

Can be combined with
Downloads :
Data Sheets For : Type 6014
Type 6014 data sheet | direct-acting plunger valve
Data Sheets For : Combined with Products
Type 2513 data sheet | appliance socket according to DIN EN175301-803
Type 2511 data sheet | ASI-appliance socket
Type 2508 data sheet | cable plug according to DIN EN 175301-803
