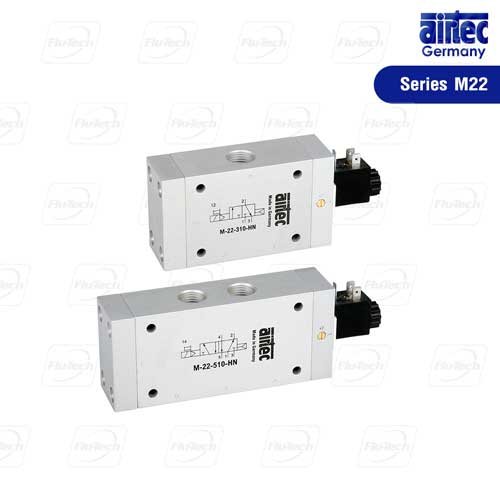

Airtec - Series M-22 electrically operated 3/2-way, 5/2-way and 5/3-way, nominal size 14 mm, G1/2

คุณสมบัติสินค้า:

SKU : Series M-22

electrically operated 3/2-way, 5/2-way and 5/3-way, nominal size 14 mm, G1/2

Share

หมวดหมู่ : Brand Airtec

แบรนด์ : AIRTEC

Share

Electrically operated valves | Series M-22 electrically operated 3/2-way, 5/2-way and 5/3-way, nominal size 14 mm, G1/2

With its array of high-quality products, AIRTEC can cover all requirements in the field of electrically operated pneumatic valves. AIRTEC can quickly help to find a valve to suit your operations, without compromising design, dimensions or performance.

Technical details

ConnectionG1/2
Nominal size14 mm
Temperature range-10°C ... +70°C
MediumFiltered, oil-free and dried compressed air according to ISO
8573-1:2010, Class 7:2:4, instrument air, free of aggressive
additives. Alternatively the pressure dew point must be at
least 10°C below lowest occurring ambient temperature.
MaterialsBody: Al (anodized), seals: NBR, inner parts: Al, steel and
plastic
ProtectionIP 65 according to EN 60529
Valves in accordance with 2014/34/EU (ATEX) available. (Chapter 13)

Electrically operated spool valve. The manual override is detent and is operated by screw driver.

 3/2-way-valves 5/2- and 5/3-way-valves
M-22-310-HN-xxx
3/2-way, single solenoid, air spring return, NC
M-22-510-HN-xxx
5/2-way, single solenoid, air spring
return
MO-22-310-HN-xxx
3/2-way, single solenoid, air spring return, NO
M-22-511-HN-xxx
5/2-way, single solenoid, mechanical spring return
M-22-311-HN-xxx
3/2-way, single solenoid, mechanical spring return, NC
ME-22-511-HN-xxx
5/2-way, single solenoid, external pilot pressure, mechanical spring return
MO-22-311-HN-xxx
3/2-way, single solenoid, mechanical spring return, NO
M-22-520-HN-xxx
5/2-way, double solenoid
ME-22-311-HN-xxx
3/2-way, single solenoid, external pilot
pressure, mechanical spring return
ME-22-520-HN-xxx
5/2-way, double solenoid, external
pilot pressure
M-22-320-HN-xxx
3/2-way, double solenoid
M-22-530-HN-xxx
5/3-way, center position closed
ME-22-320-HN-xxx
3/2-way, double solenoid, external pilot pressure
M-22-533-HN-xxx
5/3-way, center position exhausted
