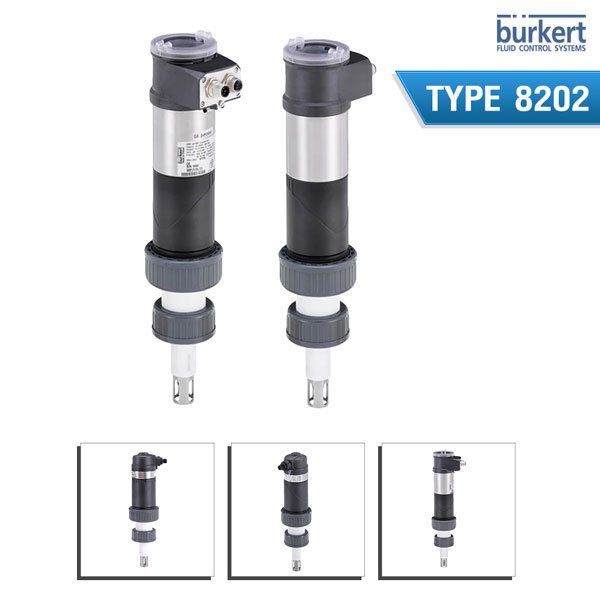

BURKERT TYPE 8202 - pH or redox potential measurement device

คุณสมบัติสินค้า:

SKU : 8202

The Type 8202 is a compact measuring device designed for the measurement of the pH value or redox potential (ORP): - pH value: in clean or contaminated liquids or liquids containing solids, sulphides or proteins...

Share

แบรนด์ : BURKERT

Share

BURKERT Type 8202 - pH or redox potential measurement device

The Type 8202 is a compact measuring device designed for the measurement of the pH value or redox potential (ORP): - pH value: in clean or contaminated liquids or liquids containing solids, sulphides or proteins. - the redox potential: in clean or contaminated liquids or liquids containing solids, sulphides or proteins which may present low conductivity. Thus, due to the design of the measuring device, Bürkert simplifies installation and maintenance work. The display is only required for start-up, configuration (e.g. selection of pH/ORP measurement, measuring range, units, calibration, limit values...) or as a process value display. The device Type 8202 is available - with three adjustable outputs : two digital outputs and one analogue output - with four adjustable outputs: two digital outputs and two analogue outputs. The Type 8202 converts the measuring signal, displays various values in different measuring units (if display is mounted) and computes the output signals, which are provided via one or two M12 plug-in connections.

  • Integrated compact measurement device for direct connection to control level (PLC)
  • Thanks to the modular HMI, parameterisation, calibration and transfer of parameterisation data
  • Usage of 120 mm standard PG 13.5 pH/redox-probes with S8 connector (Type 8203 recommended)
  • Simulation of process values and diagnostic functions

*For selecting the correct product please refer to the technical data, images and notes for proper use according to the data sheet.


Materials

TYPE 8202 : Can be combined with

 Type 8203 - pH- and ORP-probes
 Type 8611 - eCONTROL - Universal controller
 Type 8619 - multiCELL - Multi-channel and multi-function...
 Type 8693 - Digital electropneumatic process controller...
 Type 8802 - ELEMENT continuous control valve systems -...
 Type S022 - Insertion adaptor/fitting for ELEMENT...
