AIGNEP – SERIES-1021 STRAIGHT MALE ADAPTOR WITH METRIC THREAD
คุณสมบัติสินค้า:
SKU : 1021
The AIGNEP – SERIES-1021 series are push-on brass fittings to connect safely with thermoplastic tubes in pneumatic and fluid applications. The sealing is metallic and the connection is very easy thanks to the particular shape of the hose adaptor. The hexagon of the locking nut is always on top to facilitate mounting. (Push-On Fittings AIGNEP – SERIES-1021 Series)
Share
แบรนด์ : AIGNEP
Share
AIGNEP – SERIES-1021 STRAIGHT MALE ADAPTOR WITH METRIC THREAD
The AIGNEP – SERIES-1021 series are push-on brass fittings to connect safely with thermoplastic tubes in pneumatic and fluid applications. The sealing is metallic and the connection is very easy thanks to the particular shape of the hose adaptor. The hexagon of the locking nut is always on top to facilitate mounting. (Push-On Fittings AIGNEP – SERIES-1021 Series)
DOWNLOAD CATALOG (ดาวน์โหลดแคตตาล็อก)

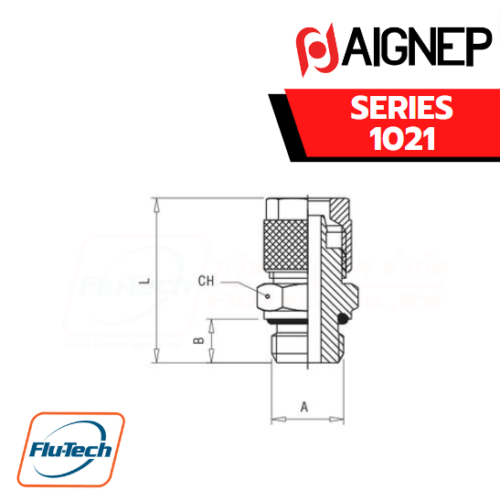

AIGNEP – SERIES-1021 STRAIGHT MALE ADAPTOR WITH METRIC THREAD
| Code | Tube | A | B | L | CH1 | Pack |
| 01021 00 001 | 4/2.7 | M5 | 4 | 20.5 | 8 | 10 |
| 01021 00 002 | 4/2.7 | M6 | 5 | 21.5 | 8 | 10 |
| 01021 00 003 | 5/3 | M5 | 4 | 23.1 | 8 | 10 |
| 01021 00 004 | 5/3 | M6 | 5 | 23.1 | 8 | 10 |
| 01021 00 005 | 6/4 | M5 | 4 | 23.1 | 8 | 10 |
| 01021 00 006 | 6/4 | M6 | 5 | 23.1 | 8 | 10 |
| 01021 00 007 | 6/4 | M12x1 | 8 | 28.1 | 15 | 10 |
| 01021 00 008 | 6/4 | M12x1.25 | 8 | 28.1 | 15 | 10 |
| 01021 00 009 | 6/4 | M12x1.5 | 8 | 28.1 | 15 | 10 |
Main advantages
- Tested technology
- All Fluids Compatibility
- Safely connection
- Metallic sealing
- Mechanical resistance
- Silicon Free
Applications
- Compressed Air
- Pneumatic Automation
- Industrial Cooling
- Inert Gases, Steam
- Inkjet, Printing
- Vacuum
Component Parts and Materials
Nickel-plated Brass Nut
Nickel-plated Brass Body
NBR O-RING Seals
Bronze Seeger
Nickel-plated Brass Base
Pressures and Temperatures
The working pressures and working temperatures depend on which type of tube is used, for this reason, the values must be determined in accordance with the tube’s features. For the “orienting and thread with O-RING” fittings, the values are: – 20 °C / + 80 °C
Connection Tubes
Plastic tubes:
PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP
Threads
Tapered gas in conformity with ISO7.1, BS 21, DIN 2999. Parallel gas in conformity with ISO 228 Class A.
Metric in conformity with ISO R/262.
