AIGNEP – SERIES 66070 ORIENTING FLOW REGULATOR FOR CYLINDER
คุณสมบัติสินค้า:
SKU : 66070
AIGNEP – SERIES 66070 is made of stainless steel AISI 316L function fittings: flow controls for cylinders, in-line and banjo fittings, unidirectional valve, quick exhaust valves, miniballvalves Ghinox. This line can be used also in salty environment and on machines that need frequent washing with aggressive detergents.
Share
แบรนด์ : AIGNEP
Share
AIGNEP – SERIES 66070 ORIENTING FLOW REGULATOR FOR CYLINDER
AIGNEP – SERIES 66070 is made of stainless steel AISI 316L function fittings: flow controls for cylinders, in-line and banjo fittings, unidirectional valve, quick exhaust valves, miniballvalves Ghinox.
This line can be used also in salty environment
and on machines that need frequent washing with aggressive detergents.
DOWNLOAD CATALOG (ดาวน์โหลดแคตตาล็อก)

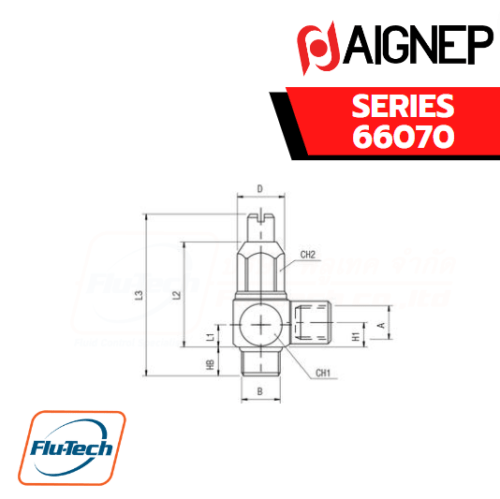

AIGNEP – SERIES 66070 ORIENTING FLOW REGULATOR FOR CYLINDER
| Code | A | B | HB | H1 | L1 | L2 | L3 | D | CH1 | CH2 | Pack. |
| 66070 00 001 | 1/8 | 1/8 | 6 | 8.6 | 7.6 | 31 | 37/43 | 15 | 16 | 13 | 2 |
| 66070 00 001 | 1/4 | 1/4 | 8.5 | 9 | 9 | 34 | 45/51 | 17 | 19 | 13 | 2 |
Main advantages
- Full stainless steel AISI 316L
- Automation with washing
- All fluids in agressive environment
- Mechanical Resistance
- Silicon Free
Applications
- Diary
- Chemical, Petrolchemical
- Life&Sciences, Inert Gases
- Vacuum
Threads
Parallel gas in conformity with ISO 228 Class A.
