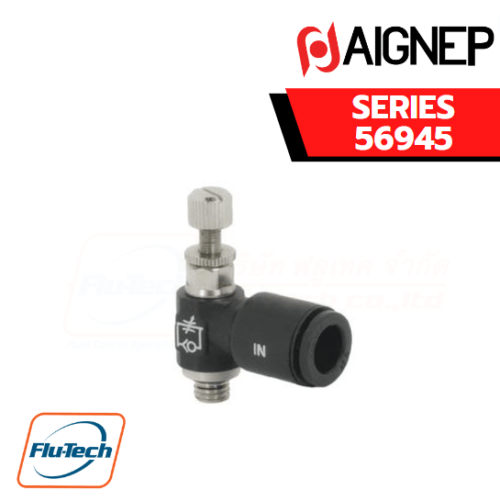

AIGNEP Series 56945 | ORIENTING FLOW REGULATOR FOR VALVE MANUAL REGULATION – “CILINDRIC”
AIGNEP – SERIES 56945 came up to answer the most estreme demands of pneumatic automation. It is a line in technopolymer , lighter and more compact which offers to demanding customers high performances.
Wide Range ø 2 – 14 mm.
DOWNLOAD CATALOG (ดาวน์โหลดแคตตาล็อก)
AIGNEP Series 56945 | ORIENTING FLOW REGULATOR FOR VALVE MANUAL REGULATION – “CILINDRIC”
Main advantages
- Quick connection and disconnection
- Full Flow and Vacuum resistant tank to special shaped seals
- 3 threads available, BSPP, BSPT (universal short) & Metric
- Lighter and More compact
- Specific configurations to satisfy the advanced robotics
- Silicon Free
Applications
- Robotics
- Automotive
- Textile, Packaging, Handling
- Compressed Air Circuit
- Industrial Water
- Vacuum
Component Parts and Materials
- Nickel-plated brass Body
- Acetalic resin Collet
- Nickel-plated brass Capsule
- Steel AISI 301 Clamping washer
- Technopolymeric positioning ring
- NBR Molded seal
- NBR Thread packing
- Base Threaded Nickel Plated Brass
- Technopolymeric Body PA
- NBR seal
Advantages
- The washer is made in stainless steel ensures the perfect tube clamping with every Kinds of materials without damage the surface. The connection between the tube and the fitting ensure a total tightness even in severe conditions such as impact and vibrations.
- The particular geometric shape of the seal ensure the perfect tightness even with vacuum.
- All of threads from this range have been equipped with tightening parts which allow the direct assembly of the fittings, reducing the installation time.
- All the straight fittings can be assembled also with Allen wrench and it is possible to use them in reduced spaces.
