MP Series 350


SKU : Series 350

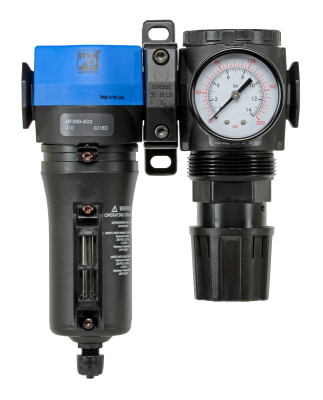

MP Series 350 BAGV1A1B6A13 Modular 1/4, 3/8, 1/2

หมวดหมู่ : Pneumatic Brand MP

แบรนด์ : MP


Series 350 BAGV1A1B6A13 Modular 1/4, 3/8, 1/2
Features GENERAL

Modular or inline mounting.
Filter and Lubricator; Polycarbonate plastic bowl with nylon shatterguard; optional metal bowl with  sight glass.
Inlet pressure rated at 250 psig (17 bar) with metal bowls up to 175°F (79°C).
Filter and Lubricator; Color caps available for visual management systems (Blue, red, yellow and grey). Consult factory for custom colors.
Front mounted modular clamping design with encapsulated screws.
Compatible with modular 380 series of products.
NPTF port threads; optional BSPP threads.


Designed to remove particulate material to 5 micron from the airstream to protect downstream equipment.
Optional bronze 5-μm-rated, 20-μm-rated, and 40-μm-rated. 5-μm-rated Polyethylene filter elements are standard.
Superior removal of free water up to 98% efficiency.
Removal of effluents via manual or automatic float drains.


Modular mounting allows regulators to be positioned at 45º increments for ease in adjustment.
Superior pressure regulation - diaphragm type regulator.
Self relieving design; large diaphragm sensing area; non-relieving optional.
Optional Pressure adjustment locking key; tamper resistant pressure setting.
Inlet rated to 300 psig (21 bar).
Reverse flow option.
Optional Pressure gauge.


Sight feed design; transparent dome to show oil delivery.
External oil delivery adjusting knob, removable for tamper resistance.
Consult catalog pages or factory for extra ports in assembly or for additional options.
