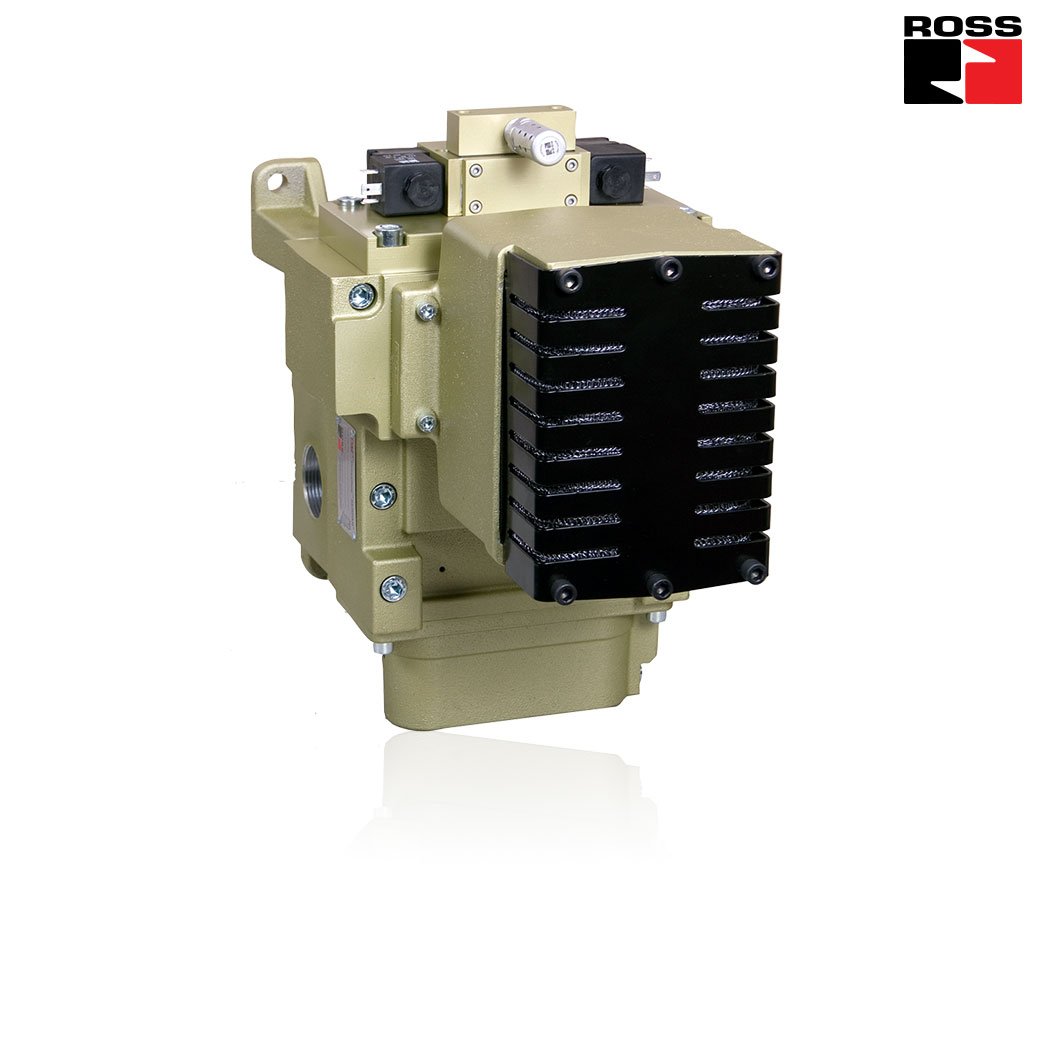

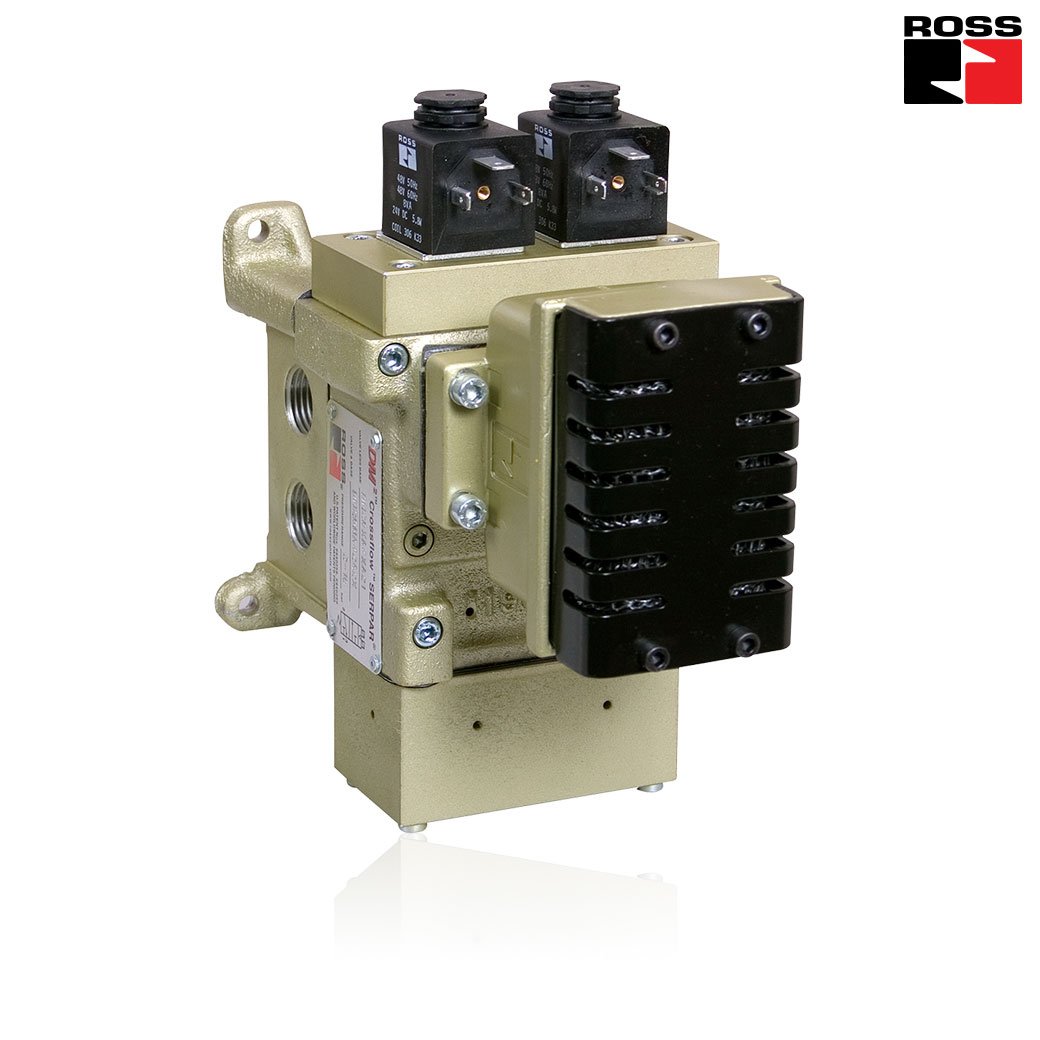

DM2 Series D | Press Control Double Valves With Internal Dynamic Monitoring & Memory Clutch/Brake Control DM2 Series D
The DM2® is a patented 3/2 normally closed valve (with an intermediate, lockout position) distinguished by SERPAR® Crossflow passages with poppet and spool valving on the main valve stems. This arrangement provides the valve’s outstanding flow characteristics and an integrated monitoring capability with total memory. The valve provides dynamic monitoring and dynamic memory.
Dynamic Monitoring means that all monitoring components change state on every valve cycle. Should the valve elements cycle asynchronously, the valve will exhaust downstream air and lock-out, prohibiting further operation.
Dynamic Memory withina monitoring system indicates that when a valve lock-out occurs, the valve will retain the fault information regardless of air or electrical changes. The DM2® system can only be reset by a defined operation/procedure, and will not self-reset (turning the valve off and on) or reset when inlet air supply is removed and re-applied. Such automatic resetting would conceal potential hazards from the operator.
Explosion-Proof solenoid pilot valves available, consult ROSS.GG1
Double Valves for Clutch/Brake Control
DM2® Series D, Self Monitored
Features & Benefits
Highly contaminant tolerant poppet construction
High flow, clog resistant silencers
Provides redundancy, dynamic monitoring and memory for the mechanical press industry regarding the control of pneumatically controlled clutch and brake applications
|Port Size (In)||3/4"|
|Status Indicator||Port Available|
|Port Size (Out)||3/4"|
|Port Size (Exhaust)||Built in Silencer|
|Mounting Type||Base Mounted|
|Inlet Side||Dual Ported Left/Right|
|Input to Main Solenoid||Independent|
|Status Indicator Connection||Indicator not included|
|WEIGHT:||9.1 lbs (4.13 kg)|
