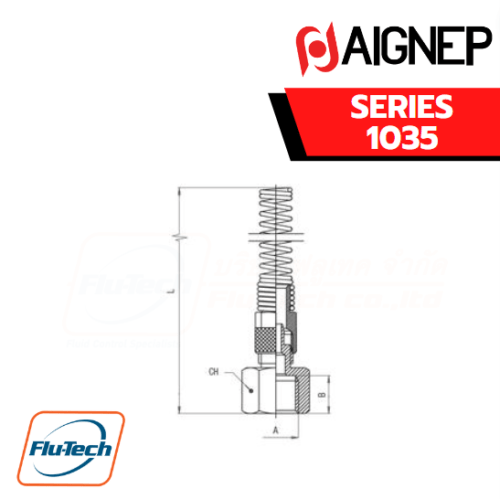

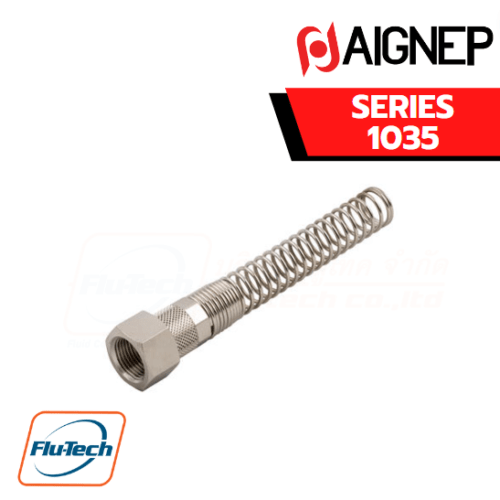

AIGNEP SERIES 1035 | STRAIGHT FEMALE ADAPTOR + NUT WITH SPRING

The AIGNEP SERIES 1035 series are push-on brass fittings to connect safely with thermoplastic tubes in pneumatic and fluid applications. The sealing is metallic and the connection is very easy thanks to the particular shape of the hose adaptor. The hexagon of the locking nut is always on top to facilitate mounting. (Push-On Fittings AIGNEP SERIES 1035 Series)

DOWNLOAD CATALOG  (ดาวน์โหลดแคตตาล็อก)

  AIGNEP SERIES 1035 | STRAIGHT FEMALE ADAPTOR + NUT WITH SPRING

Main advantages

• Tested technology

• All Fluids Compatibility

• Safely connection

• Metallic sealing

• Mechanical resistance

• Silicon Free

Applications

• Compressed Air

• Pneumatic Automation

• Industrial Cooling

• Inert Gases, Steam

• Inkjet, Printing

• Vacuum

Component Parts and Materials

Nickel-plated Brass Nut
Nickel-plated Brass Body
NBR O-RING Seals
Bronze Seeger
Nickel-plated Brass Base

Pressures and Temperatures

The working pressures and working temperatures depend on which type of tube is used, for this reason, the values must be determined in accordance with the tube’s features. For the “orienting and thread with O-RING” fittings, the values are: – 20 °C / + 80 °C

Connection Tubes

Plastic tubes:
PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP

Threads

Tapered gas in conformity with ISO7.1, BS 21, DIN 2999. Parallel gas in conformity with ISO 228 Class A.
Metric in conformity with ISO R/262.
