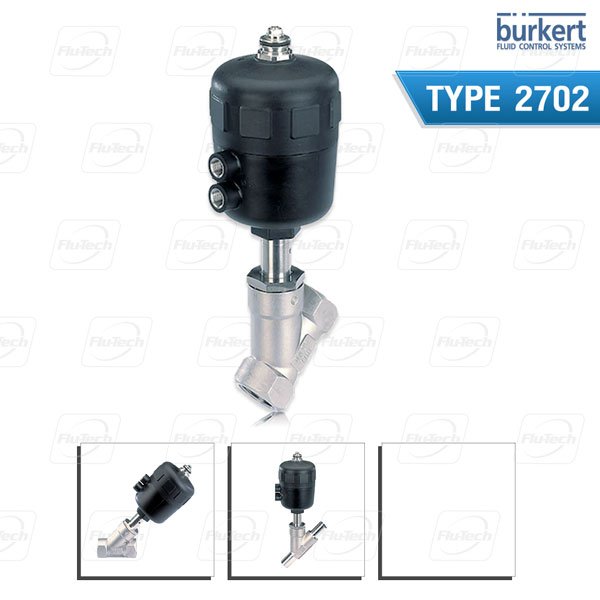

The 2702 pilot valve consists of an 316L angle seat body with a rugged pneumatic piston actuator. The parabolic valve disc results in a flow capacity approximately 35% larger than conventional control valves. It is available in either stainless steel on stainless steel or with a durable PTFE seal for tight shut-off. Type 2702 can be actuated by the positioners TopControl Continuous Type 8692/8693/8694 or SideControl Type 8635 or SideControl 8792/93 remote versions. The TopControl thus forms an optical and functional unit with the pneumatic actuator as a complete control valve system. This system has been engineered for reliable accurate control in applications where high flow rate is an advantage.
*For selecting the correct product please refer to the technical data, images and notes for proper use according to the data sheet.
Can be combined with :
|Type 8692 - Digital electropneumatic Positioner for the...|
|Type 8693 - Digital electropneumatic process controller...|
|Type 2300 - Pneumatically operated 2 way angle seat...|
|Type 3360 - Electromotive 2 way angle seat control valve|
|Type 8635 - Digital electropneumatic Positioner SideControl|
|Type 8694 - Digital electropneumatic positioner for the...|
ต้องการ : Data Sheet สินค้า กรุณา แอดไลน์ @flutech แล้วแจ้งรุ่นที่ต้องการ
